Haines 1190

Comfortable cabin cruiser

Fibreglass houseboat. Saloon, galley and steering position all in one area. Three cabins in the stern and bow with single or double berths. Three bathrooms. Second steering position on the sun deck, stair access to the rear and the bathing ladder. Outside shower with hot and cold water.

Boat data

Length:11,90 m
Wide:4,00 m
Depth:1,05 m
Standing hight:1,91 m (excluding bow)
Cabins:3
Bunks:6+2

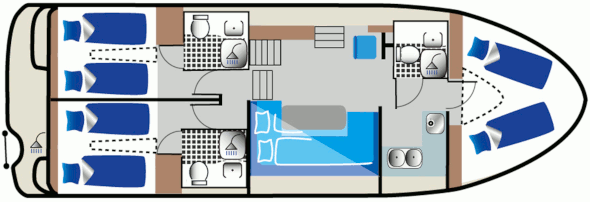

House boat Haines 1190 floor plan
Haines 1190 floor plan
Piktogramm für Steuerstand innen und außen
Piktogramm Warmluftheizung
Piktogramm für Warm- und Kaltwasser
Piktogramm für Bugstrahlruder
CD + Radio
Piktogramm für Mückenschutzgitter in den Schlafkabinen
Piktogramm für Landstromunabhängige Steckdosen
Piktogramm für 12 Volt Steckdose
Piktogramm für Echolot





Location: Hafendorf Müritz (Mecklenburg-Vorpommern)

Origin: used from charter fleet

general & technical details

general data

Headroom 2.90 m

Trailer weight 8 t

Max. Weight 11.2 t

Building material GRP

Maximum speed 15 km / h

Cruising speed 10-11 km / h

inventory

1 Board/ operator´s book

1 registarion papers for the boat

1 boat key

1 signal horn

1 emergancy flag (red)

1 first aid kit

1 Anchor with chain á 30 m

2 Shackle

1 Winch lift

4 Mooring lines á 14 m

2 Boat hooks

1 life saving ring with a line á 25 m

4 fender with linen á 2,5 m

1 Puetz (bucket) with linen á 5 m

1 ös barrel (ladle)

1 manual bilge pump with a hose

2 pegs to moore

1 shore power cable

1 hammer

1 KUHNLE-TOURS pennant

1 national flag (Germany)

2 fire extinguisher

tank

Fuel tank 400 l

Water tank 640 l

Holding tank 740 l

Water heater 74 l

sanitary

3 bathrooms with toilet, sink , shower

manual pump toilet

Wastewater collection system with intermediate tank in the bilge

rear / outside shower

hot water via engine or heating

equipment

built-in oven 4 -burner hob

fridge

warm air heating (gas , Truma )

Bow

Depthfinder the outdoor helm

horn

230 volt shore power

230-volt converter ( inverter )

2000W always ( with shore power 3000 Watt , reinstalled )

newly installed audio system



anchor manually

Stainless steel guardrails

Rudder angle indicator on both control stations

Depthfinder the outdoor helm ( only in Germany )

Ceiling interiors white

Walls / decorative interiors white and wood color

Warm air heating

Gas system automatically , 2 x 11 kg

engine

Motor Nanni diesel

Drive power 36,8 kW ( 50 hp )

Bow electrically about 5 kW

no stern thruster No ( retrofit )

2 control stations

hydraulic control

electric

Alternator 12 V / 110 A

Board network 12 V with undervoltage lockout

Marine Battery 3 x 125 Ah

1 starter battery 125 V

Shore power 230V

230 V sockets on shore power and 2,000 W DC converter

All information are without guarantee.

Pictures, data of equipment and tecnical datas may vary by the boats

build yeargross price Germany*name
199879.900,- €Nancy

 * currently 19% VAT

Eine Familie macht sich mit dem äußeren Steuerstand der Haines 1190 vertraut und erfreut sich der leichten Bedienung.

Example cabin

Example Salon
