Febomobil 1180

Easy to board

This is a so called "ponto boat" or "driving holiday apartment. It offers 2 bedrooms and bathrooms, a large and bright living area with a pantry and 2 terraces.



  • The swimmers of the Febomobil series are made of seawater resistant aluminium, this means that the aluminium doesn´t react with the water, so a Corrosion is impossible.
  • The wintering is possible, including ice.
  • Construction is a aluminum frame and is more light and lonlasting than a construction made of wood
  • The walls outside are made of  glass fiber reinforced plastic, so the big advantage is no additional costs, no painting and paint damage
  • The isolation of the walls outside are made of water repellent styrofoam. Inside we used  coated boards.
  • The windows and exterior doors consist of Plastic frame with a thermo-insulating glazing
  • The roof is made of glass fiber reinforced plastic and longlasting

Boat data

Length: 11.80 m

Width: 3.80 m (also larger widths are possible such as 4,65 m)

Draft: 0.50 m

Headroom: 2.30 m throughout

Cabins: 2

Berths : 5 + 2

CE norm: C

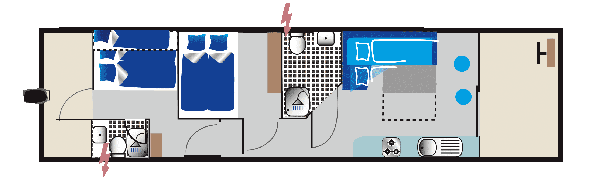

Houseboat Febomobil 1180 floor plan
Febomobil 1180 floor plan
Piktogramm für Sonnenplatz auf dem Dach
Piktogramm Warmluftheizung
Piktogramm für Steuerstand innen oder außen
Piktogramm für Überall führerscheinfrei
CD + Radio
Piktogramm für 12 Volt Steckdose
Piktogramm für Bugstrahlruder

General and technical details

General data

  • Headroom 3.55 m
  • Trailer weight 4.7 t
  • Max. weight 5.2 t
  • Colour options (new boats only)
  • Stainless steel rail
  • Aluminum construction
  • Max. speed 12 km/ h
  • Cruiser speed 10 km/ h



Engine

  • Honda outboard 11.03 kW (15 hp)
  • 1 helm at front
  • Hydraulic steering

Electric

12 volt electrical system with undervoltage lockout

3 AGM batteries 140 Ah onboard power supply

Shore power and socket 230 volt

200 watt solar system

Equipment

  • Plastic ceiling
  • PVC floor covering
  • Plastic walls
  • Wooden deck (Bankirai)
  • 3 flame gas stove and built in oven
  • Fridge
  • 2 gas bottles 11 kg
  • Warm air heating by Truma gas heating E4000
  • Horn
  • Radio / modern audio system

Tank

  • Fuel tank 60 litres
  • Water tank 390 litres
  • Holding tank 390 litres



Sanitary

2 electric toilets

Warm air heating in each cabin with Truma gas heating E4000

Hot and cold running water

Electric

  • 12 volt electrical system with undervoltage lockout
  • 2 AGM batteries 140 Ah onboard power supply
  • Shore power and socket 230 volts
  • Horn

Equipment

Plastic ceiling

PVC floor covering

Layered plastic walls

Wooden deck (Bankirai)

3 flame gas stove and built in oven

Fridge

2 gas bottles 11 kg

Stainless steel rail in aft

Continuous rail around boat for safety

Tank

  • Fuel tank 60 litres
  • Water tank 390 litres
  • Holding tank 390 litres



Sanitary

1 disabled access bath with washbasin, shower

1 manual pump toilet

Shower seat with 2 handles

Water heater 10 litres

Warm and cold running water

Warm airheating in every cabin with Truma gas heating E4000

Construction yeargross price* (GER)Name
2016154.000,- €Phila (boat owner program only)

* currently 19% VAT

Advantages to comparable pontoon boats

The febomobil differs in terms of quality clearly from other pontoon boats, because it was designed as a boat and therefore special attention was paid to features such as handling characteristics, seaworthiness, safety and handling.

The approach of other boatbuilders is first of all to build a nice house that will then be brought to the water. Our approach provides us with decisive advantages, especially when used as a mobile holiday home. For example, the Febomobil, which is not too wide, is easier to find a berth than a wider boat. The Febomobil is also easier to control and causes fewer problems for its crew and thus less damage. Nevertheless, the many years of experience of the Kuhnle-Werft GmbH with other model series ensure that the boat crew has a generous and comfortable space. We have been showing since 1997 that in a limited space we can create a comfortable holiday atmosphere while at the same time providing enough privacy for every crew member on board.

Kitchen with a lot of work space

Space in the living area

modern bathroom
