Kormoran 1140

A modern houseboat in the traditional style

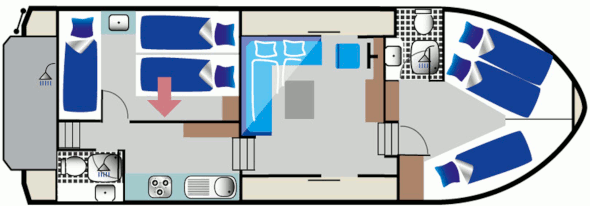

Modern houseboat in the traditional style with saloon and steering position midship. There are 3 external doors, bow and stern cabins (3 berths) and 2 bathrooms with the bow being an ensuite.  Second steering position on the sundeck and stern platform with ladder.

Length: 11.45 m

Width: 3.90 m

Draft: 0.75 m

Headroom: 1.98 m overall

Cabins: 2

Berths : 6 + 2

CE norm: C / D

Piktogramm für großer Salon
Piktogramm für Steuerstand innen und außen
Piktogramm für Bimini
Piktogramm für Warmwasserheizung
Piktogramm für Warm- und Kaltwasser
Piktogramm für Bugstrahlruder
CD + Radio
Piktogramm für Mückenschutzgitter in den Schlafkabinen
Piktogramm für 12 Volt Steckdose
Piktogramm für Echolot

Location: Hafendorf Müritz (Mecklenburg-Vorpommern)

Origin: used by charter fleet

general & technical details

general data

Headroom 2.75m

Trailer Weight 15 t

Max. Weight 17 t

Material steel , 3-6 mm

Speed ​​11-12 km / h

Cruising speed 9-10 km / h

inventory

1 Log / User Manual

1 boat documents

1 boat key

1 mouth horn

1 emergency flag red

1 First Aid Kit

1 anchor with chain of 30 m

2 shackles

1 Winschenhebel

3 railing chains with carabiner and shackles

4 ropes à 13 m

2 boat hook

1 lifebuoy with line 25 m

4 fenders with lines of 2.5 m ( Hafendorf Müritz )

1 Pütz ( bucket ) with line of 5 m

1 bailer ( ladle )

1 manual bilge pump with hose

2 peg for applying

1 hammer

shore power cable 30 m

1 Kuhnle route pennant

1 national flag D or F

1 bathing ladder

1 helmsman chair

2 fire extinguisher

tank

Fuel tank 530 l

Water tank 1.200 l

Holding tank 1.500 l

Water heater 250 l , isolated

sanitary

2 heads with toilet, sink , shower

manual pump toilet

wastewater collection system with intermediate tank in the bilge

rear / outside shower

hot water via engine or heating

equipment

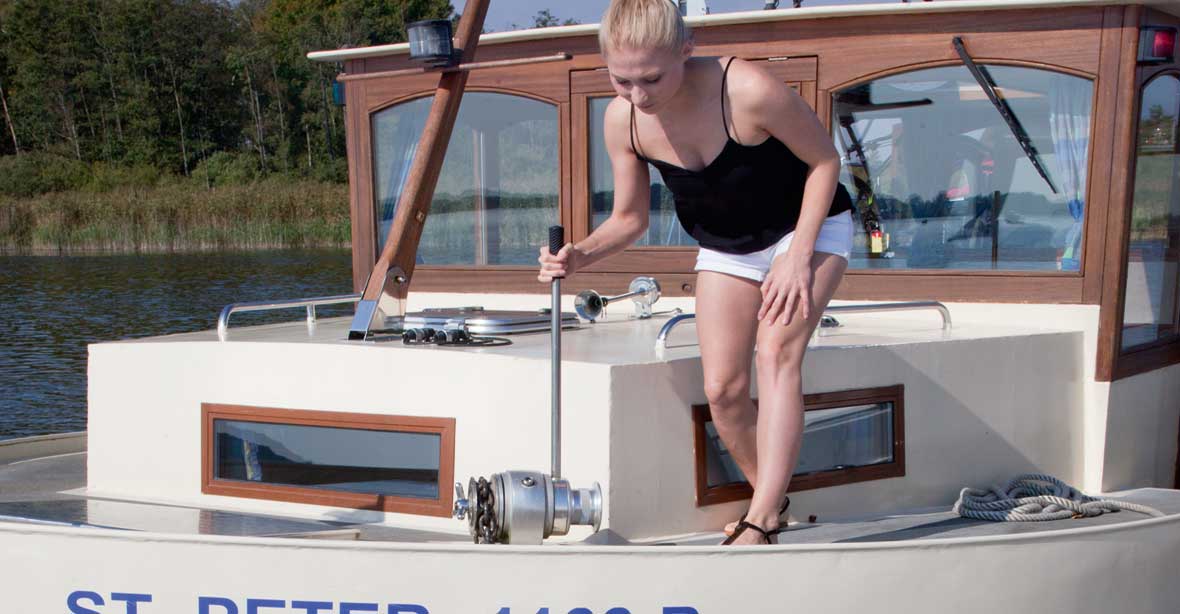

anchor manually

Stainless steel guardrails

Rudder angle indicator on both control stations

Depth sounder on both control stations

Ceiling interiors damp proof

ceiling panels

Walls / decorative interiors coated white with slight wooden frame from Mahgoni - Sapele ( wood breeding ) insulating glazing

Heating Webasto hot water 5 kW

Gas system automatically , 2 x 11 kg

engine

Motor Nanni diesel

Drive power 45,6 kW ( 62 hp )

Hydraulic bow thruster about 5 kW

no stern thruster ( retrofit )

2 control stations

hydraulic control

electric

Alternator 12 V / 110 A

Board network 12 V with undervoltage lockout

Marine Battery 2 x 180 Ah

Starter battery 1 x 143 Ah

Shore power 230V

230 V sockets on shore power and 2,000 / 4,000 W DC converter

build yeargross pricename
1999128.900,- € *Tollense (boat owner program only)
2003143.400,- € *Mimi (boat owner program only)
2004159.900,- € *Seeteufel (boat owner program only)
2004159.900,- € *Dorsch (boat owner program only)
2004159.900,- € **Emile Zola (Niderviller)(boat owner program only)

* Germany: currently 16% VAT
** France: currently 20 % VAT (TVA)

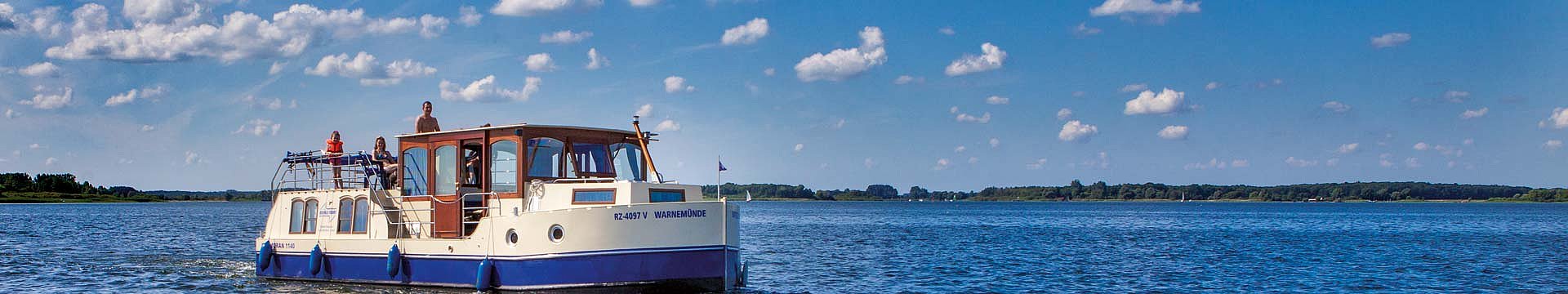

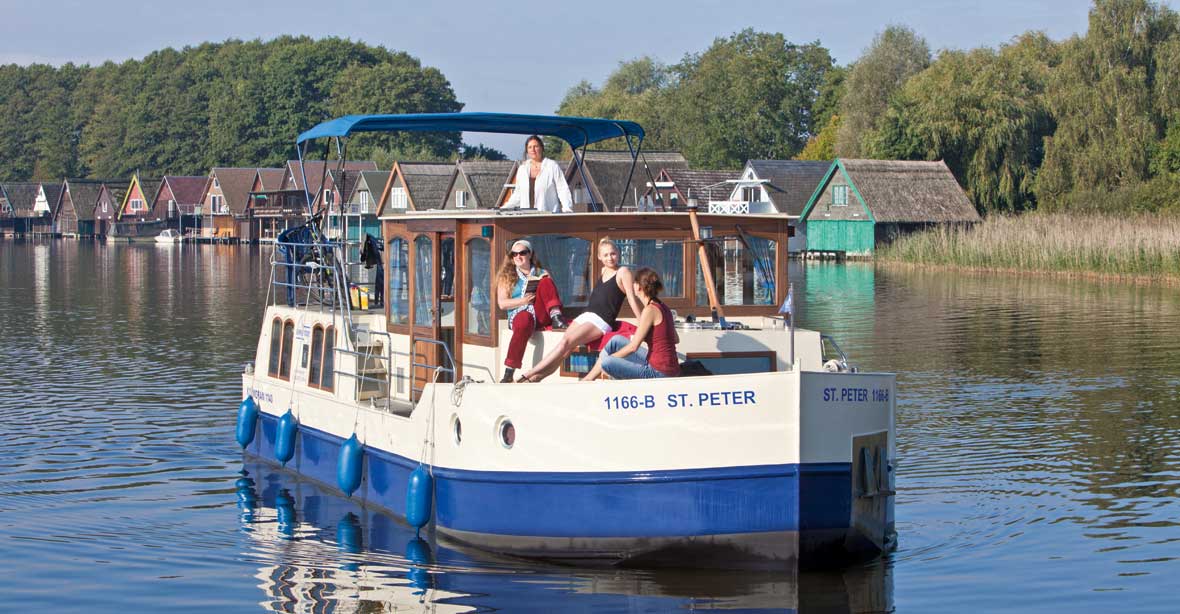

Primus Kormoran 1140

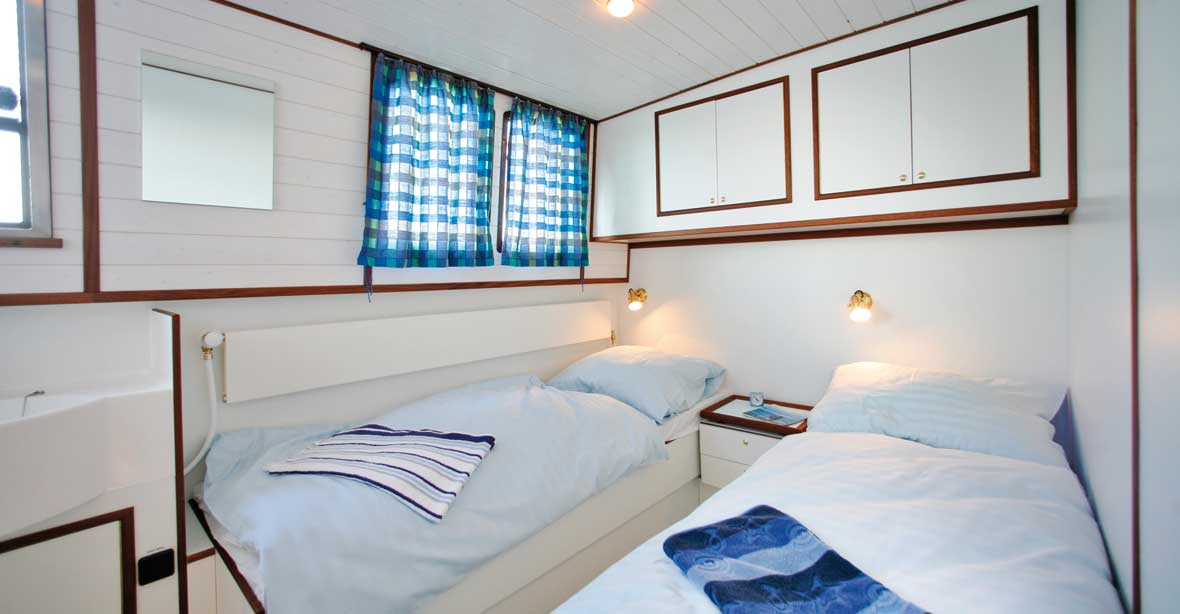

Example cabin

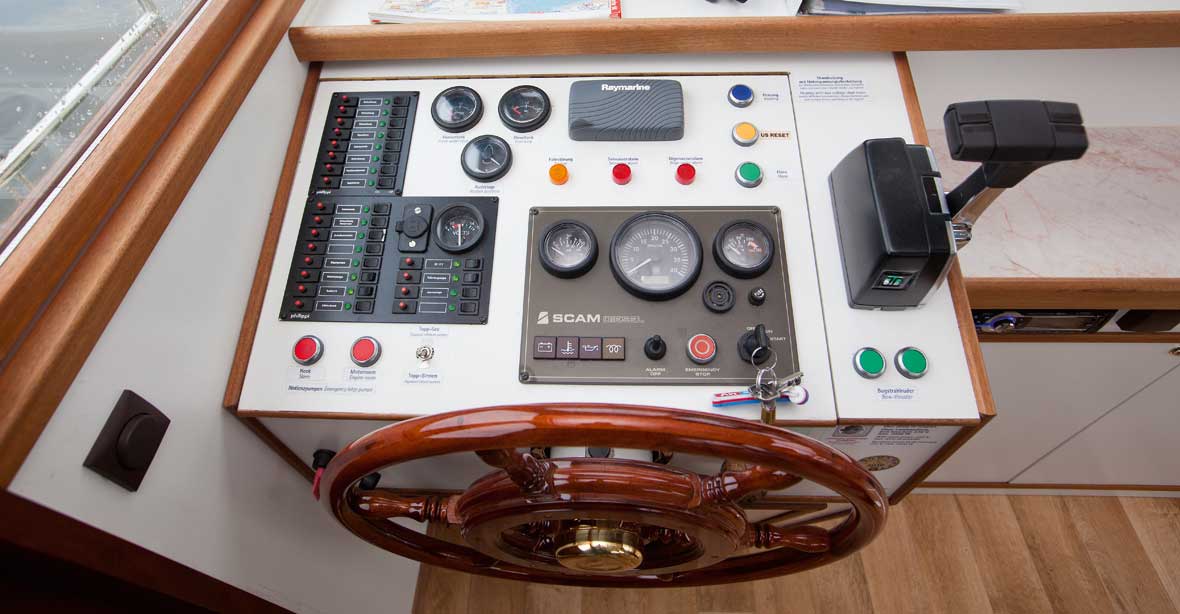

Inside steering position

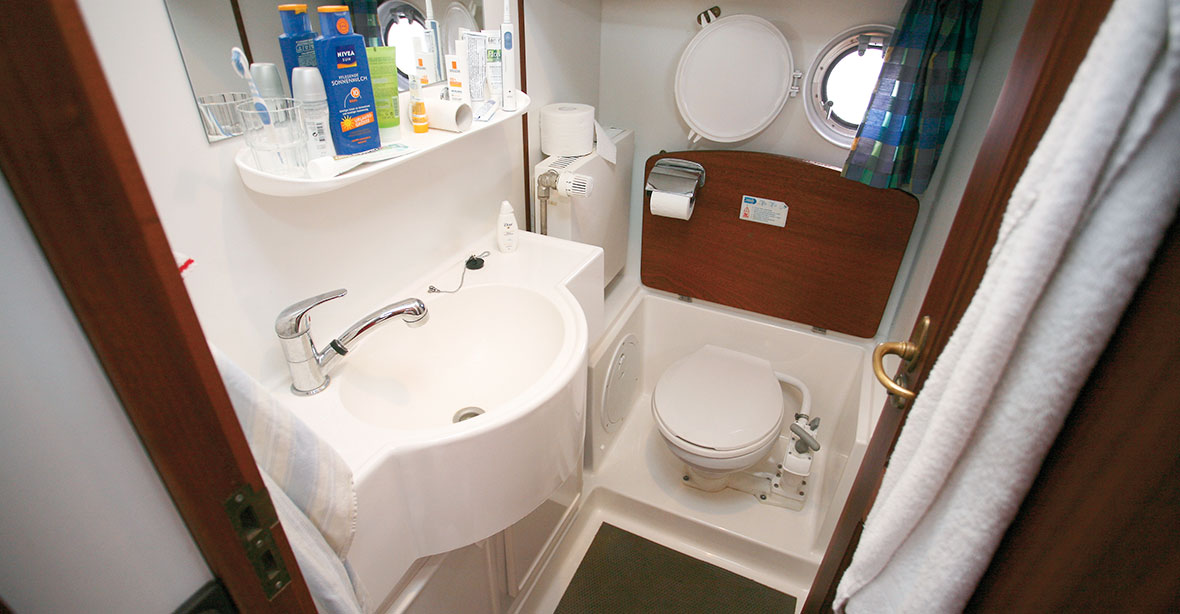

Example bath

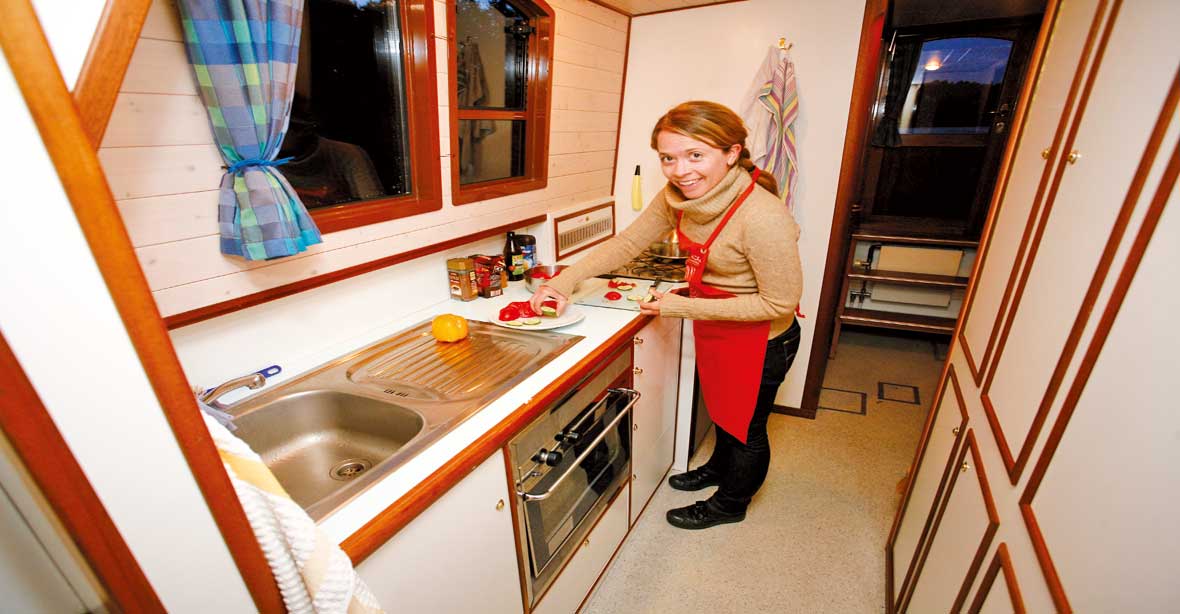

Example pantry
