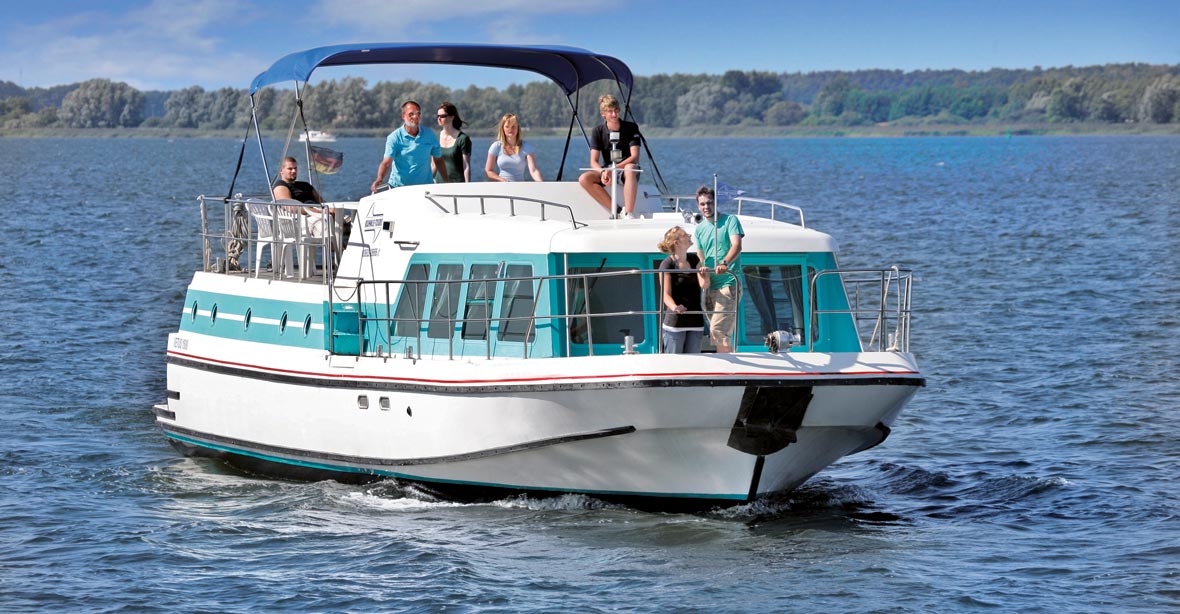

The mobile home on the water

Headroom 2.88 m ( top FRP shell ) , 3.10 m ( with rails , compass and steering wheel ) , + 1.00 m light pole Trailer Weight 7 t

Building material GRP

Speed 11-12 km / h

Cruising  9-10 km / h

1 log / Operator

1 boat documents

1 boat key

1 mouth Bugle

1 emergency flag red

1 first aid kit

1 anchor with chain of 30 m

2 shackles

1 Winch

4 railing chains with carabiner and shackle

4 ropes à 14 m

2 boat hook

1 lifebuoy with line 25 m

4 fenders with lines of 2.5 m ( Hafendorf Müritz )

1 Puetz ( bucket ) with linen à 5 m

1 bailer ( ladle )

1 hand bilge pump with hose

2 peg for applying

1 shore power cable 30 m

1 hammer

1 Kuhnle route pennants

1 national flag D or F

1 bathing ladder

2 fire extinguishers

Fuel tank 220 l
Water tank 750 l
Dirty water tank* 750l
Hot water boiler 55 l, vetus WH55

* *Do you know that there are regulations for ship toilets? Yes, you read correctly. Since 2008 all built boats must be equipped with a black water tank. This tank is where all materials coming out of the toilet belong. But in the boat area there are other polluted waters, the so-called gray water. This grouping includes water from the sinks, which are usually contaminated with oil and/or food residues. In our boats, the gray water also goes into the collection tank and can be disposed of in an environmentally friendly manner.

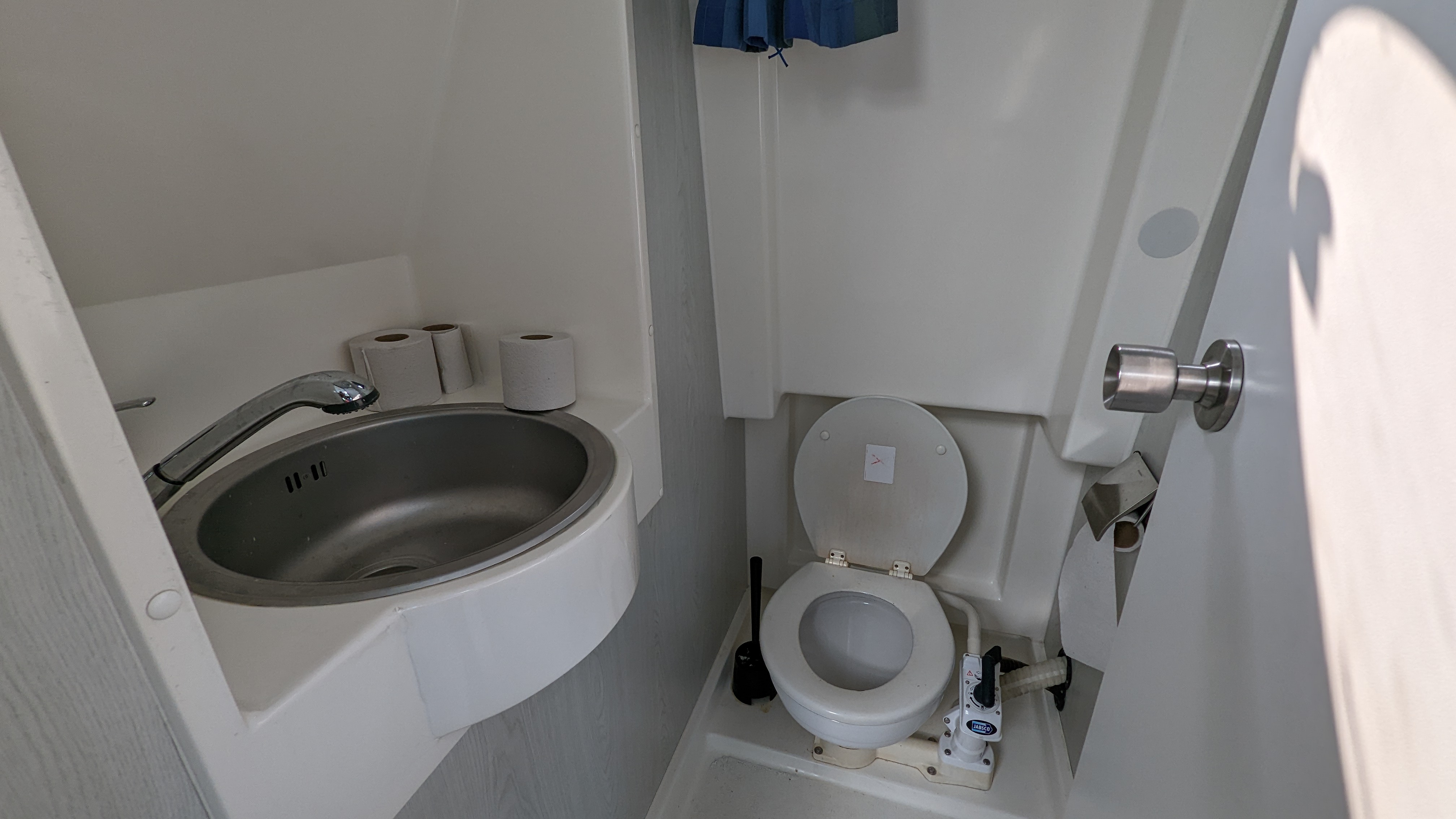

2 bathrooms toilet, sink, shower

manual pump toilet

Wastewater collection system with intermediate tank in the bilge

Hot water via engine

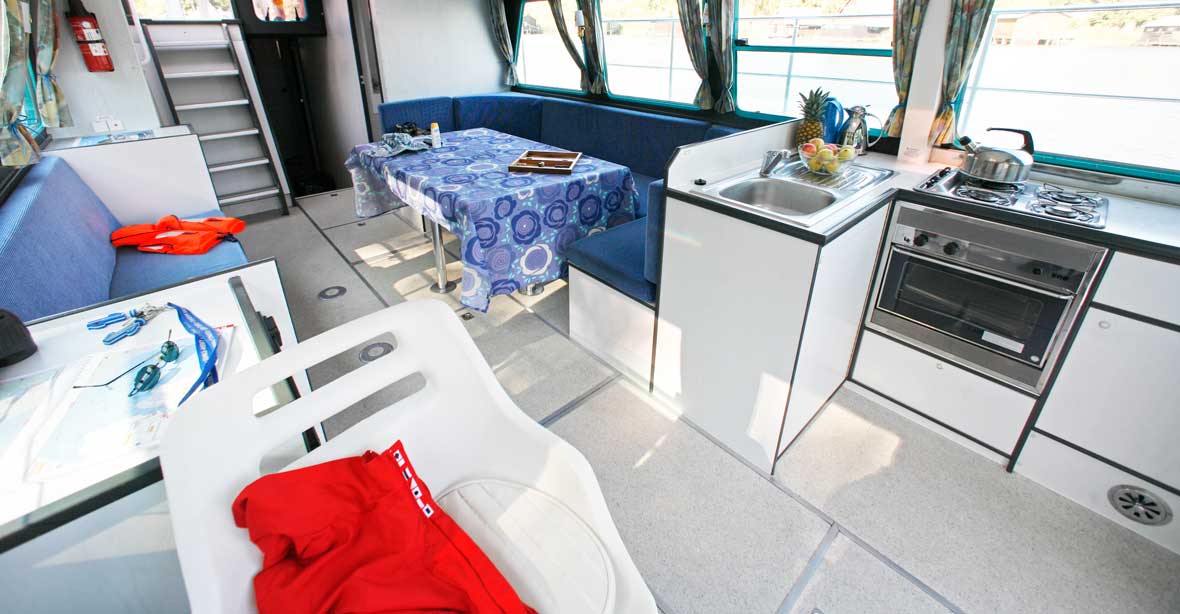

Cramer 4 -burner built-in cooker ( gas )

built-in oven

refrigerator Electrolux RM 4400 R 103 l ( gas aging . Power 12 V / 230 V )

Heating ( Eberspächer D5 l hot air diesel heating )

echo sounder ( only in Germany )

bugle

compass

transformer for shaver in each bathroom

connection for mobile charger

radio with 2 speakers in salon

Anchor manually winds 15 kg Danforth anchor plate

Stainless steel guardrails , diameter 25 mm

Rudder angle indicator on both control stations

Depth sounder on both control stations

Ceiling interiors white Walls / decorative interiors white

warm air heating

Gas system automatically , 2 x 11 kg

Motor Vetus Mitsubishi Diesel M 4:14

Drive power 24,3 kW ( 33 hp )

Transmission / drive Delta 30 or PRM 160

Bow thruster electric, vetus bow thruster 12 V with 1.5 kW ( 23 kgf ) with 12 V / 90 Ah

no stern thruster ( Provision exists rest retrofitted)

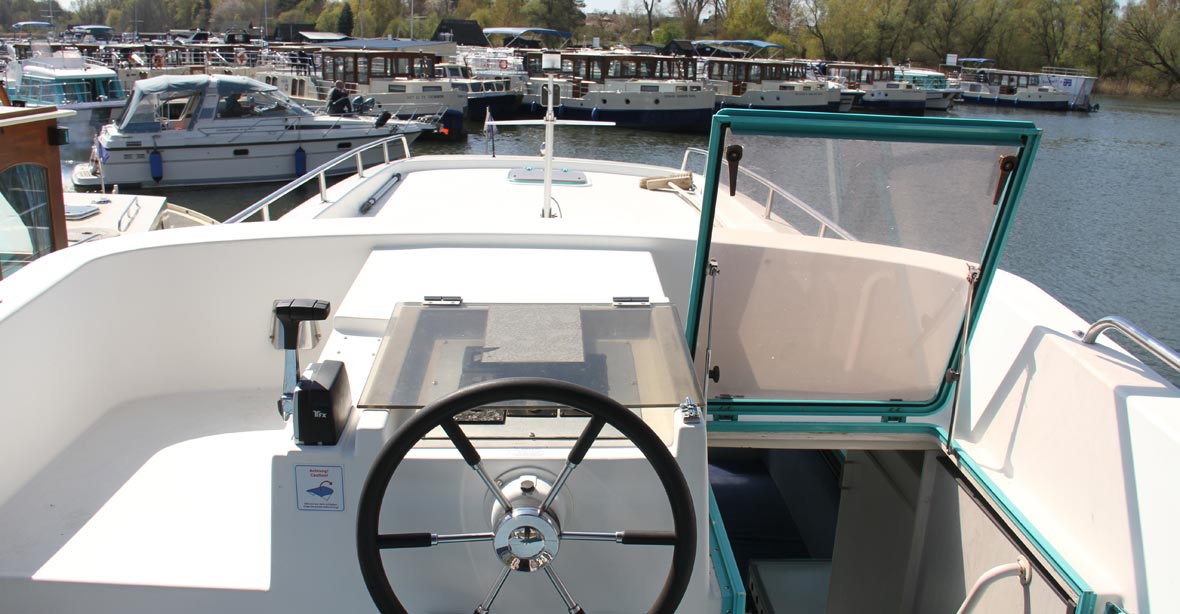

2 control stations

hydraulic control

Alternator 12 V / 110 A

Board network 12 V with undervoltage lockout

Marine Battery 2 x 180 Ah

1 starter battery 143 Ah

Shore power 230V

230 V sockets 1 via voltage transformers , 1 on shore power
